Flexhal

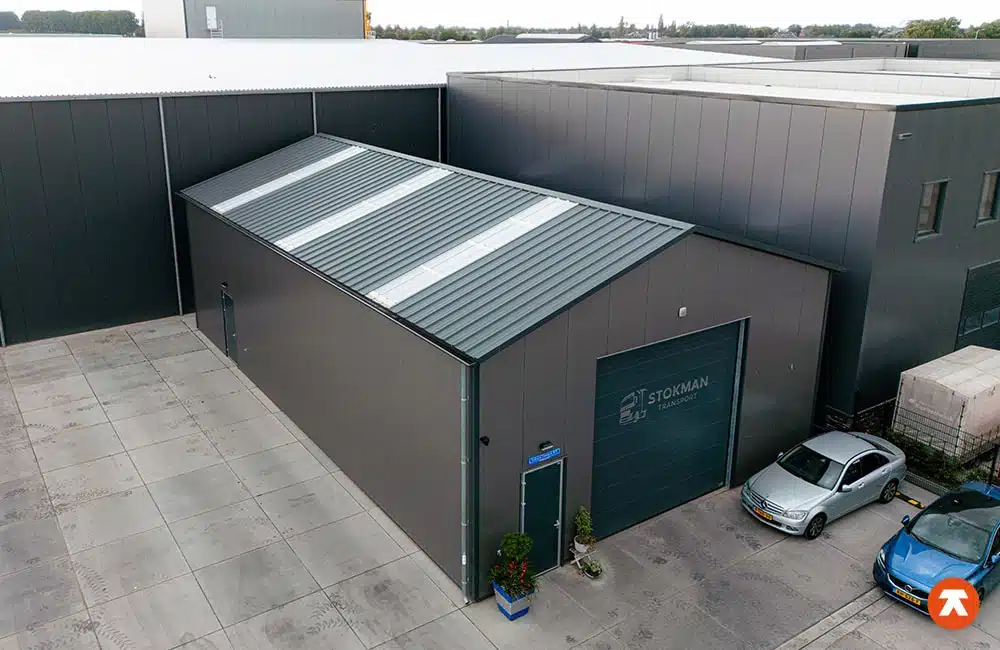

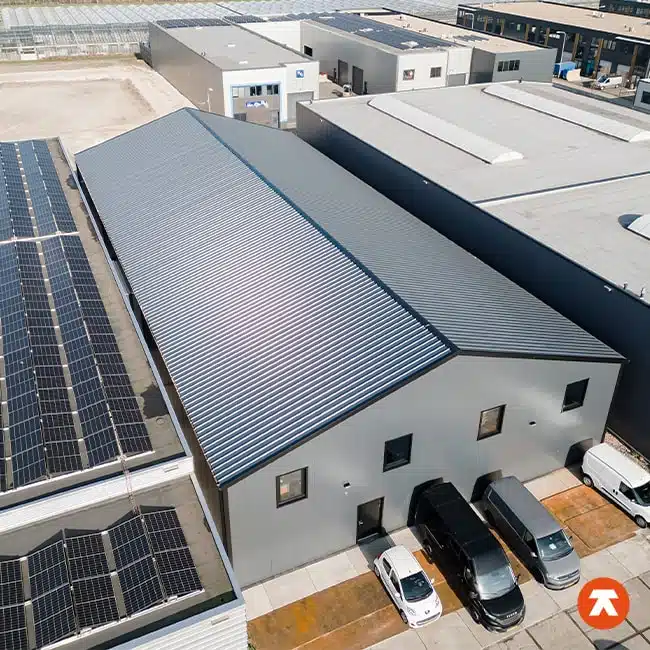

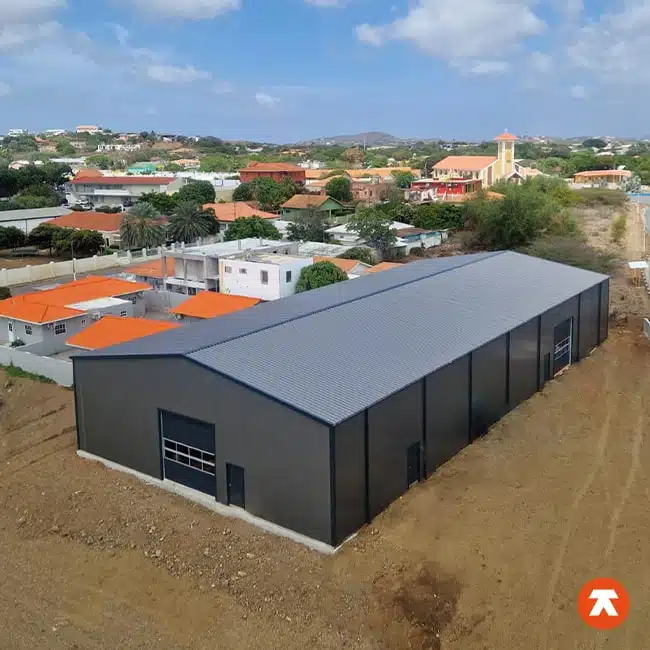

Semi-permanent steel hall with the look of a permanent industrial building

The Flexhal combines flexibility with a high-end appearance. This industrial hall is built using a robust steel hall structure and fully clad with sandwich panels, offering a neat, professional look and excellent insulation.

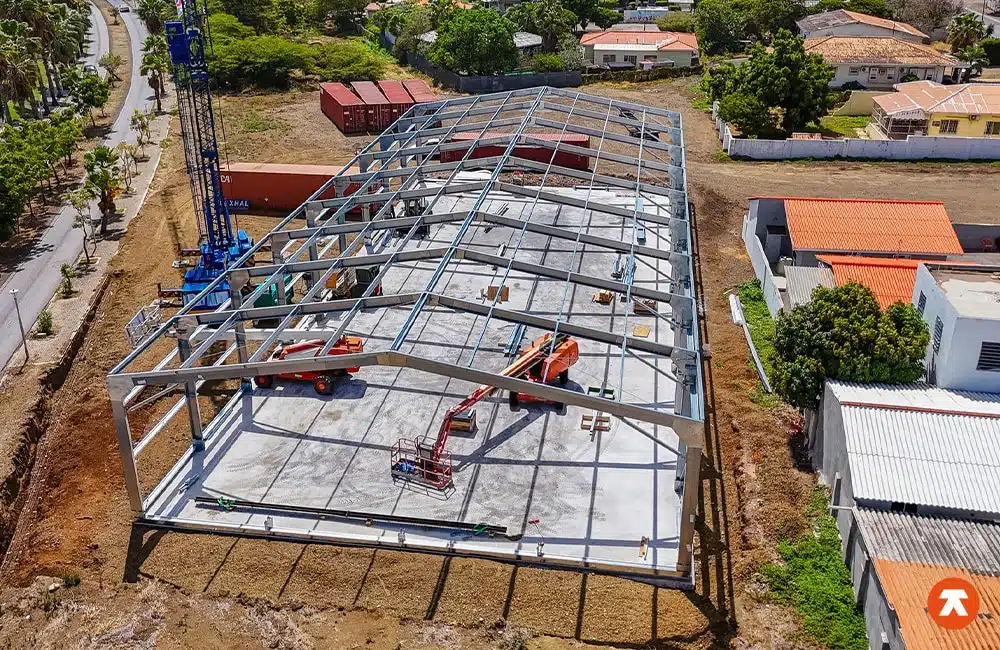

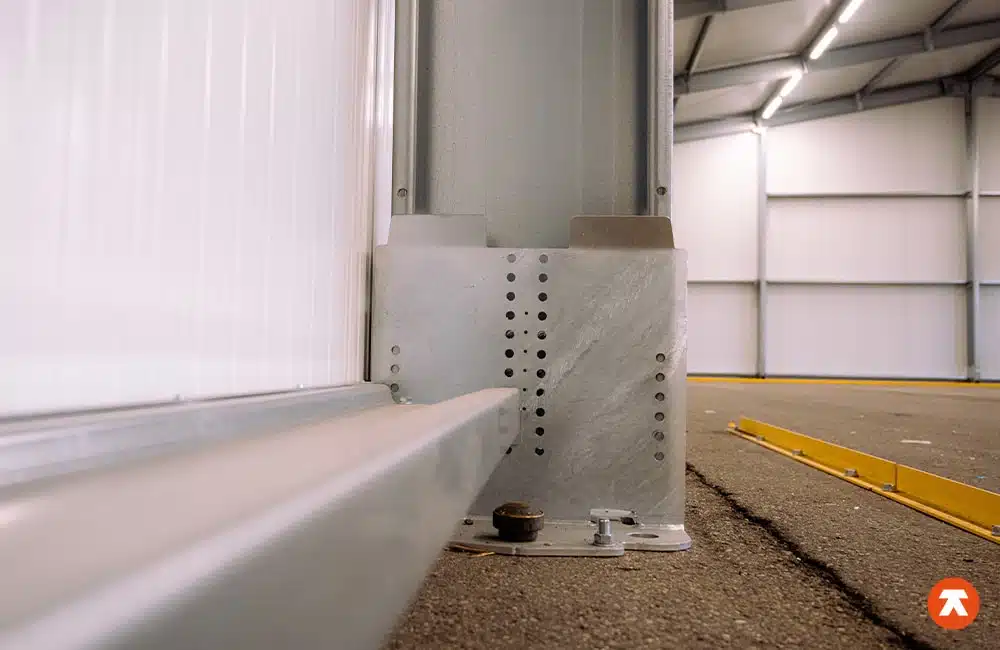

The steel frame of the Flexhal can be installed without a foundation and is anchored with heavy ground anchors. It’s the ideal solution for workshops, office spaces, or temporary locations that require extra height and flexibility.

Request a quote

What can you use a Flexhal for?

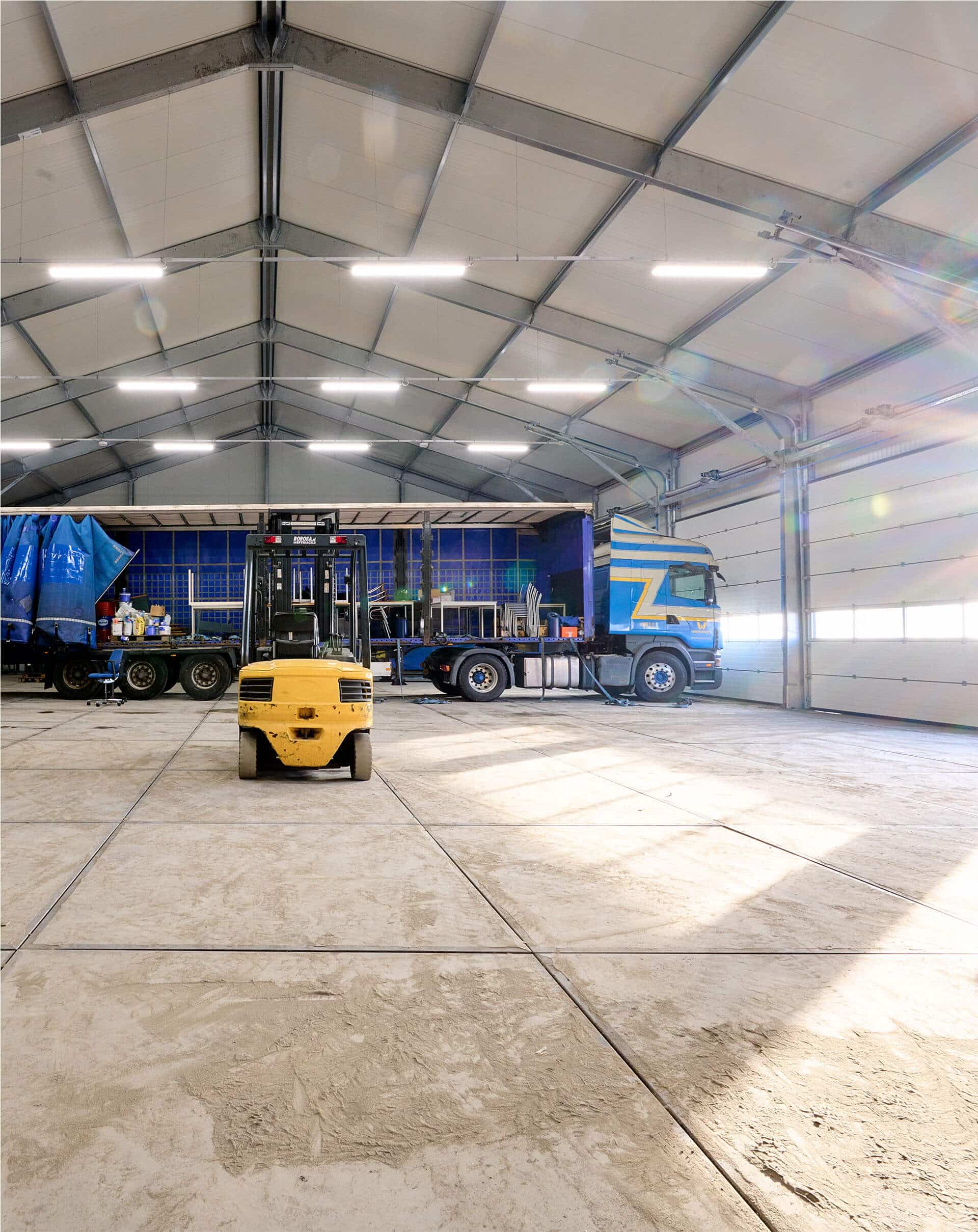

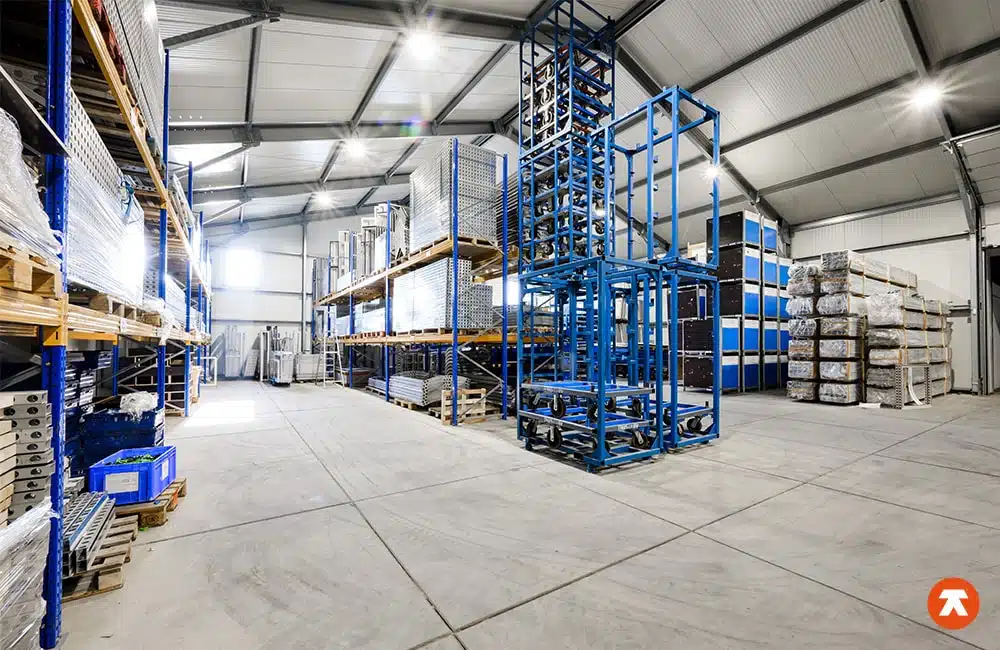

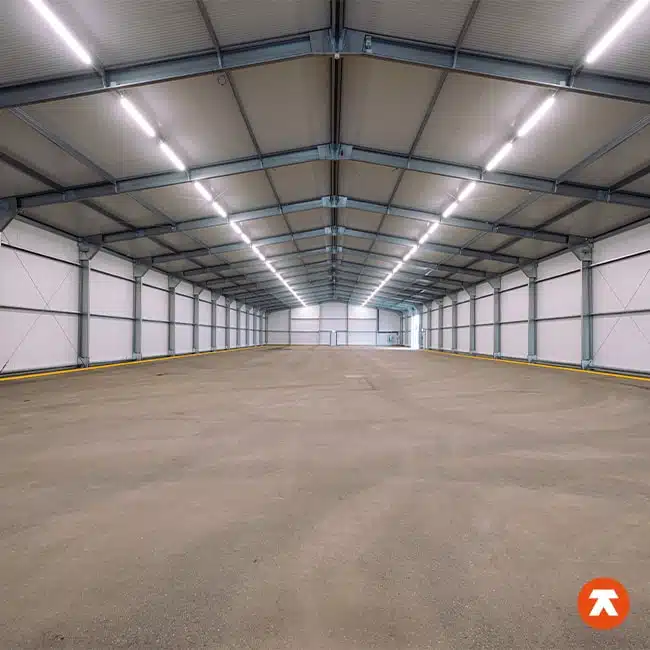

Spacious and tall industrial hall

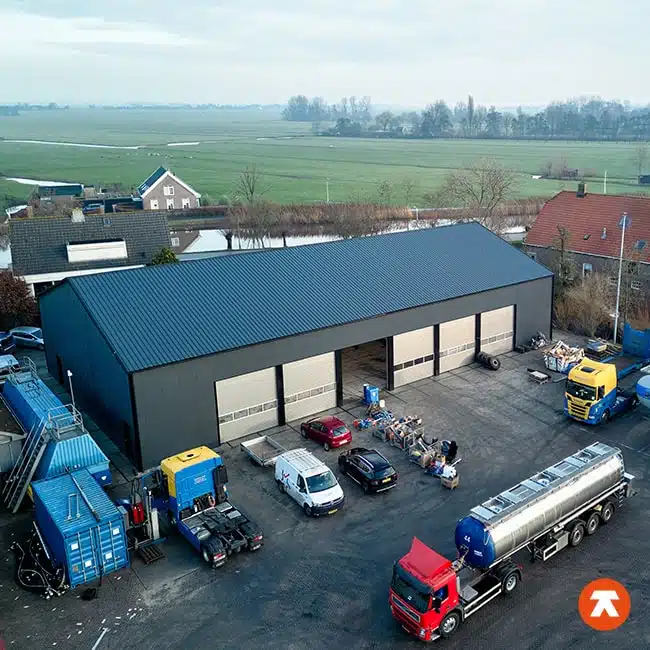

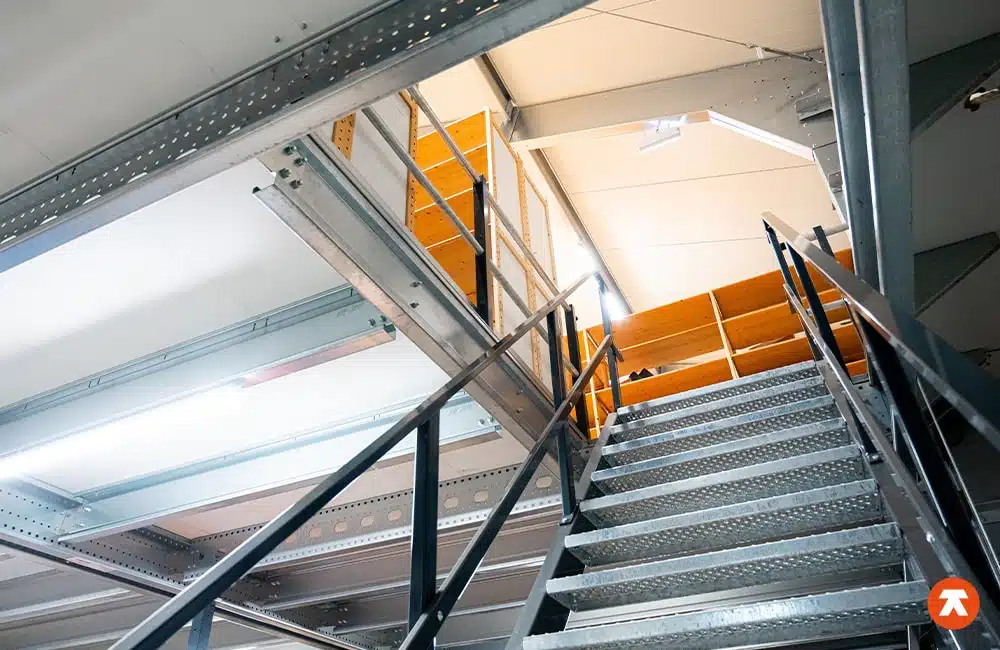

The Flexhal is perfect for businesses needing a combination of office and workshop space. With side heights of up to 6 meters, it’s easy to create a second floor, allowing you to divide the space efficiently. The sandwich panels ensure a well-insulated working environment.

Temporary shelter or facility

The Flexhal is an excellent choice for temporary insulated buildings during emergencies, renovations, or seasonal peaks. It’s quick to install and provides a safe, insulated and comfortable environment thanks to its sturdy design. A reliable and flexible solution.

Retail space & showroom

The Flexhal works well as a shop or showroom. The insulated sandwich panels help maintain a pleasant indoor temperature year-round. The flexible interior allows you to design the space exactly to your liking.

Discover the Flexhal in 90 seconds

Curious how the Flexhal is assembled and what this semi-permanent steel hall can offer?

In this 1:30 minute animation, you’ll see step by step how the structure works and why the Flexhal is the ideal solution for storage, production, or business space.

Specifications
    Width:

    10 to 30 meters

    Length:

    Unlimited, extendable per 5 meters

    Side height:

    4.00 m | 5.00 m | 6.00 m

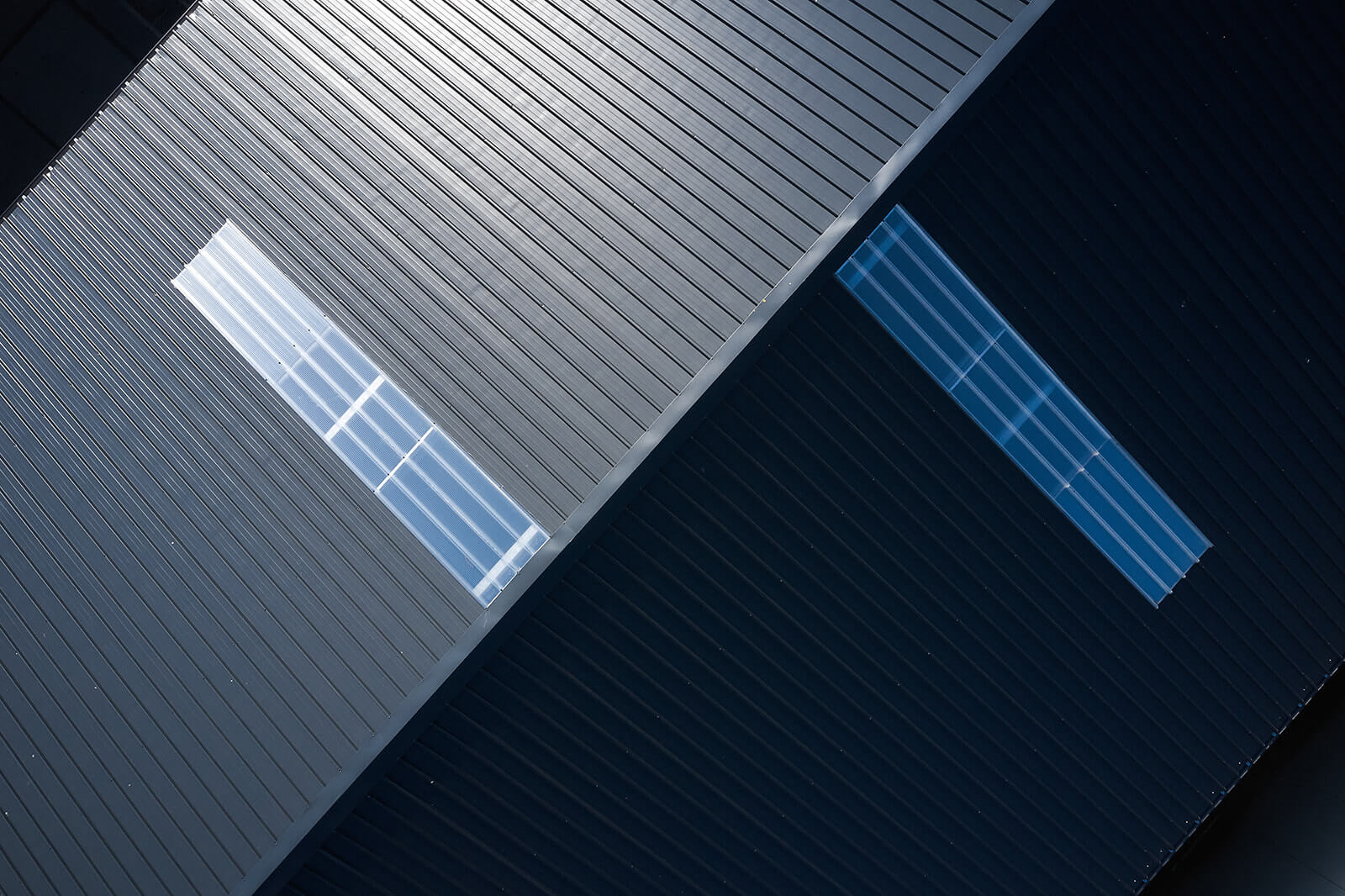

    Roof covering:

    Standard

    • 60 mm PIR sandwich panels (11.52 kg/m²) | Rc-value 2.76 m²K/W | Fire class B-s2,d0

    Optional

    • 80 mm PIR sandwich panels (12.28 kg/m²) | Rc-value 3.85 m²K/W | Fire class B-s2,d0
    • 100 mm PIR sandwich panels (13.04 kg/m²) | Rc-value 4.81 m²K/W | Fire class B-s2,d0
    • 120 mm PIR sandwich panels (13.78 kg/m²) | Rc-value 5.76 m²K/W | Fire class B-s2,d0
    • 150 mm PIR sandwich panels (14.94 kg/m²) | Rc-value 7.18 m²K/W | Fire class B-s2,d0
    • 60 mm Rockwool sandwich panels (16.58 kg/m²) | Rc-value 1.38 m²K/W | Fire class A2-s1,d0
    • 80 mm Rockwool sandwich panels (18.64 kg/m²) | Rc-value 1.83 m²K/W | Fire class A2-s1,d0
    • 100 mm Rockwool sandwich panels (20.64 kg/m²) | Rc-value 2.29 m²K/W | Fire class A2-s1,d0
    • 120 mm Rockwool sandwich panels (22.64 kg/m²) | Rc-value 2.74 m²K/W | Fire class A2-s1,d0
    • 150 mm Rockwool sandwich panels (25.57 kg/m²) | Rc-value 3.42 m²K/W | Fire class A2-s1,d0

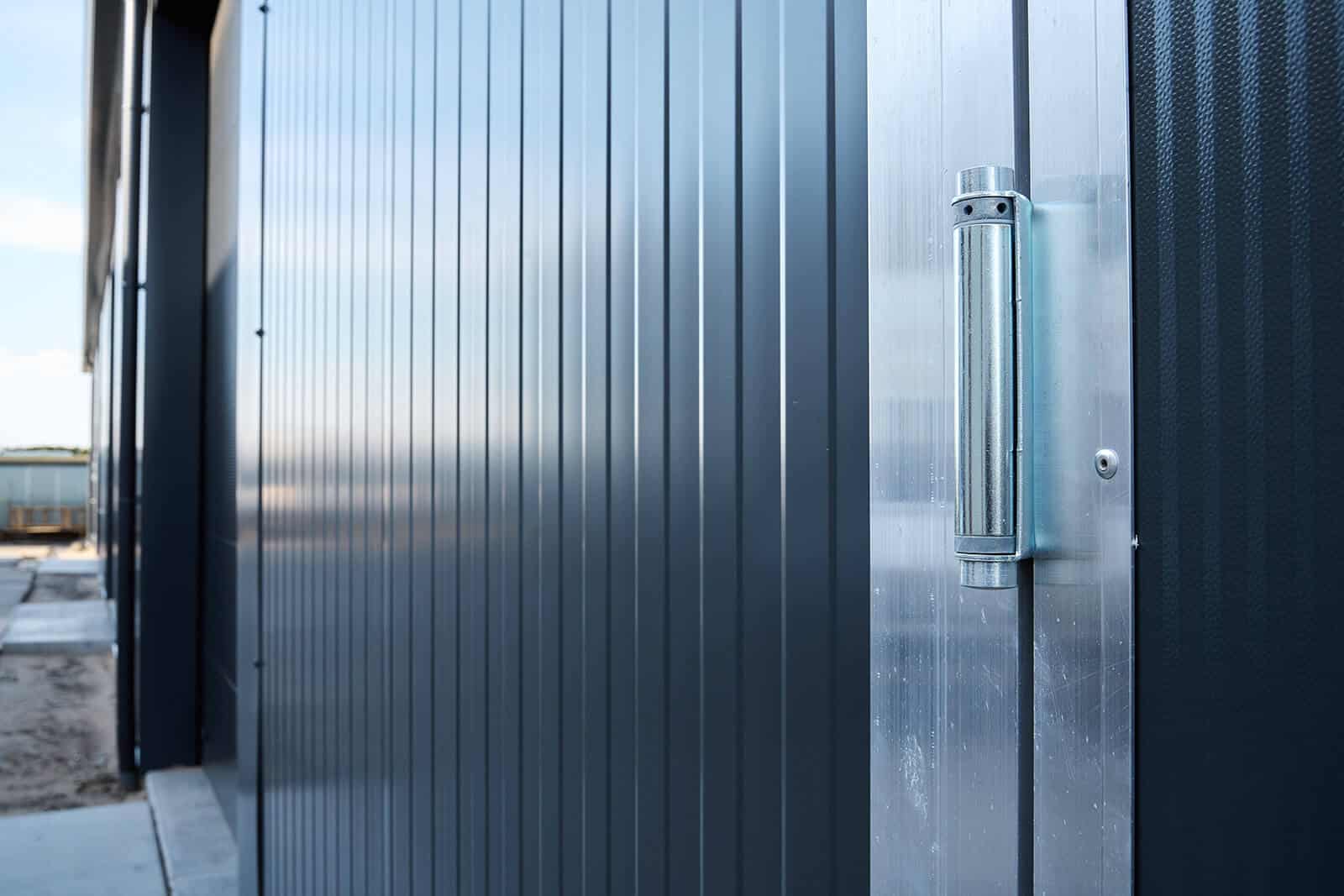

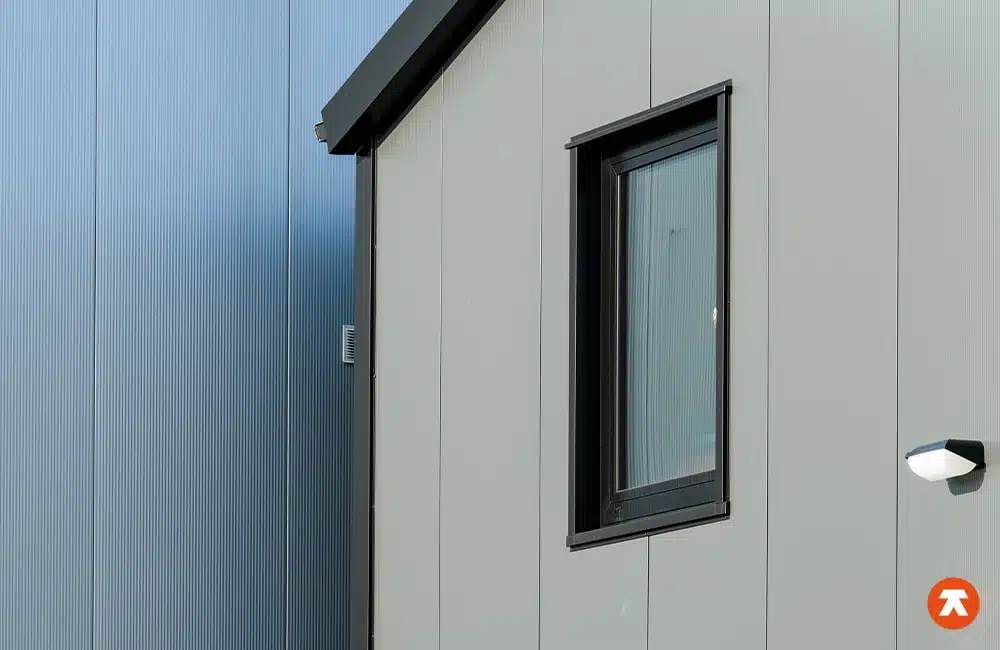

    Wall covering:

    Standard

    • 60 mm PIR sandwich panels (11.52 kg/m²) | Rc-value 2.76 m²K/W | Fire class B-s2,d0

    Optional

    • 80 mm PIR sandwich panels (12.28 kg/m²) | Rc-value 3.85 m²K/W | Fire class B-s2,d0
    • 100 mm PIR sandwich panels (13.04 kg/m²) | Rc-value 4.81 m²K/W | Fire class B-s2,d0
    • 120 mm PIR sandwich panels (13.78 kg/m²) | Rc-value 5.76 m²K/W | Fire class B-s2,d0
    • 150 mm PIR sandwich panels (14.94 kg/m²) | Rc-value 7.18 m²K/W | Fire class B-s2,d0
    • 60 mm Rockwool sandwich panels (16.58 kg/m²) | Rc-value 1.38 m²K/W | Fire class A2-s1,d0
    • 80 mm Rockwool sandwich panels (18.64 kg/m²) | Rc-value 1.83 m²K/W | Fire class A2-s1,d0
    • 100 mm Rockwool sandwich panels (20.64 kg/m²) | Rc-value 2.29 m²K/W | Fire class A2-s1,d0
    • 120 mm Rockwool sandwich panels (22.64 kg/m²) | Rc-value 2.74 m²K/W | Fire class A2-s1,d0
    • 150 mm Rockwool sandwich panels (25.57 kg/m²) | Rc-value 3.42 m²K/W | Fire class A2-s1,d0
    Flashing:

    Standard

    • Flashing | RAL 9005

    Optional

    • Flashing | RAL colour of choice
    Steel:

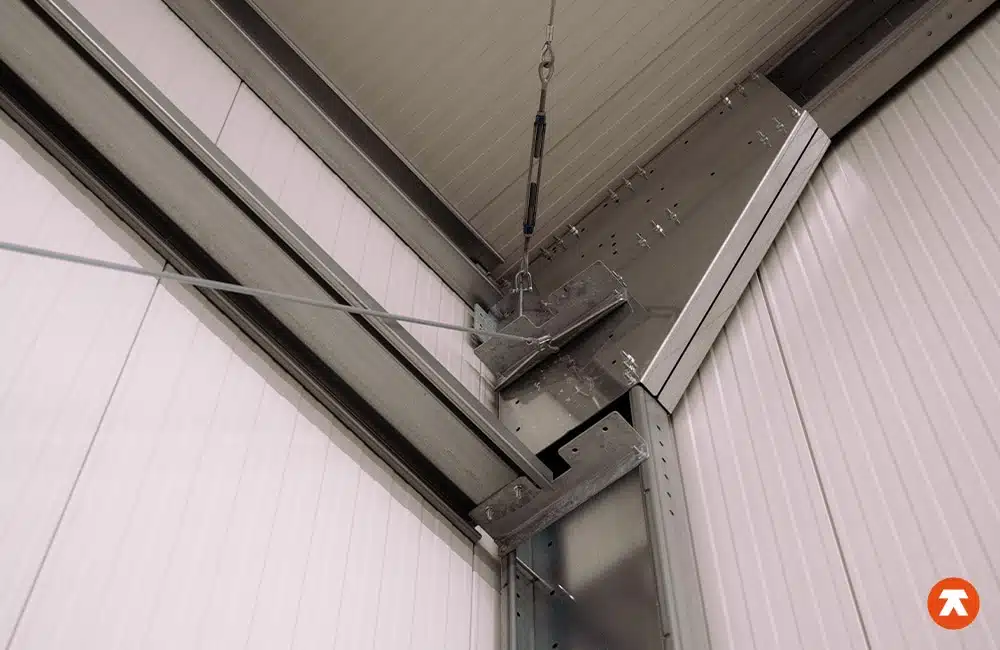

    Cold-rolled  |  450 mm C+ profile

All options

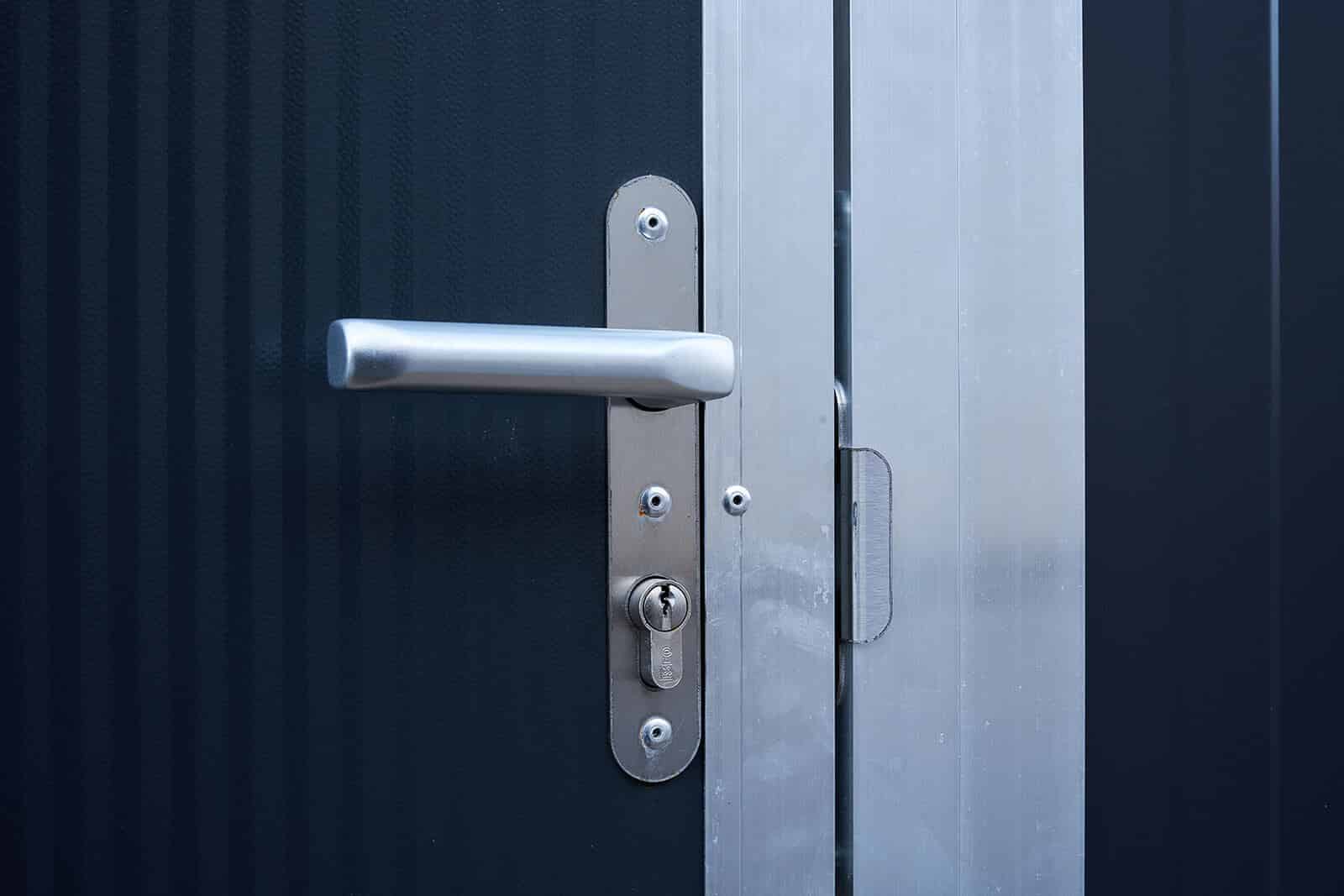

Single personnel door
Double personnel door
Manual sliding door
Electric roller door
Overhead door

Create your ideal
Flexhal here!

Got to Flexhal configurator
Erik Kuiper, accountmanager Tent Trading Nederland/België

Need help?

My name is Erik, I’m Sales Manager at Tent Trading. Would you like personal advice on a Flexhal that suits your company? Feel free to contact me or request a free quote right away!

Request a quote
Get in touch

Need help?

My name is Erik, I’m Sales Manager at Tent Trading. Would you like personal advice on a Flexhal that suits your company? Feel free to contact me or request a free quote right away!

Request a quote Get in touch
Erik Kuiper, accountmanager Tent Trading Nederland/België
Constructeur bekijkt werktekening van aluminium tentconstructie op scherm

Calculations & Safety

At Tent Trading, safety comes first. All of our structures are designed by experienced engineers and checked by certified structural engineers. Each Flexhal comes with detailed structural calculations as standard. We also support you with the documents needed for a smooth permit application process.

Want to know more? Don’t hesitate to contact us!

Constructeur bekijkt werktekening van aluminium tentconstructie op scherm

Frequently Asked Questions about the Flexhal

A Flexhal is a semi-permanent building made with a steel structure and fully clad in sandwich panels. It offers the appearance of a fixed warehouse combined with the flexibility of a temporary insulated building. With a large span (up to 30 m) and side heights up to 6 m, it’s ideal for workshops, office space, showrooms, storage or even emergency housing.
No. The Flexhal can be installed without a foundation and is securely anchored with heavy-duty ground anchors, ensuring stability on almost any paved surface.
Yes. The Flexhal is designed by professional engineers and comes with detailed structural calculations. It complies with European safety standards and is made of fire-resistant materials. Tent Trading can also support you in preparing the required documents for smooth permit approval.
The Flexhal is supplied as a prefab building kit. All parts are custom produced and prepared for quick assembly on-site. The walls are made of durable sandwich panels with a clean finish.
Tent Trading does not carry out the assembly itself but collaborates with a trusted network of experienced assembly partners. Upon request, we’re happy to connect you with a reliable partner who can handle the full installation of your Flexhal.
